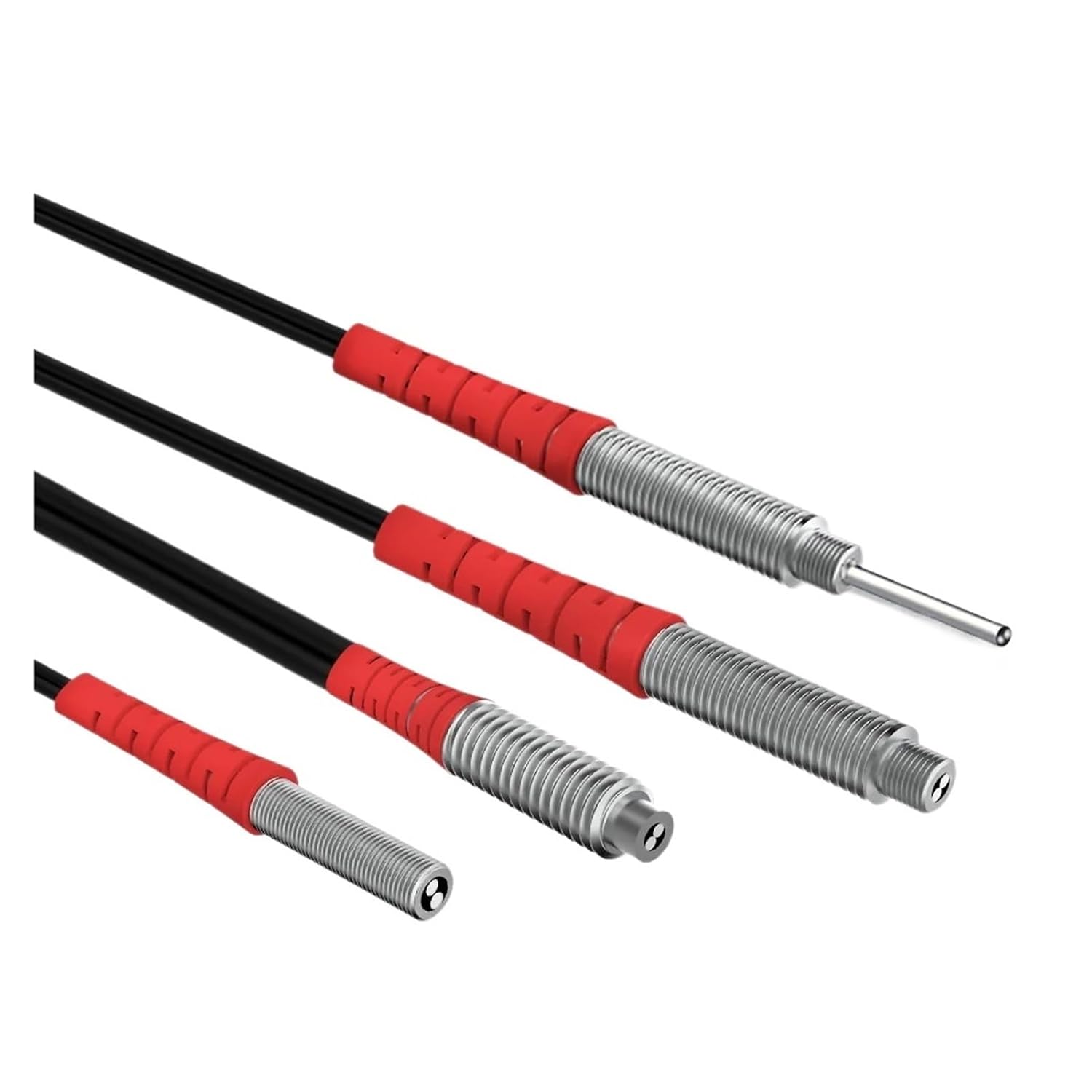

Fiber Optic Sensor Probe Diffuse Reflection M3 M4 M6 1-2M Cable Coaxial Non-coaxial Photoelectric Optical Proximity Switch(Coaxial M6 1M)

Is_customized : YesTheory : Optical SensorModel Number : FRS-310Material : MetalType : Optical-Electronics SensorOutput : Switching TransducerOrigin : Mainland ChinaUse : Position SensorSensing distance : 0-120MM/150MM/400MMMinimum sensing distance : 0-0.1mmStandard targe : White card reflcetion rate 90%Residual voltage : DC1VSupply voltage : 10-30 VDC 3-wriesResponse frequency : 600 HzProtection : IP 67Connection : 1M Fiber CableFunction : Emitter power optional Output time delay optional

• 1. High-Precision Detection for Tiny Objects: Adopts advanced fiber optic sensing technology with detection accuracy up to 0.1mm; can easily identify small parts, thin films, and transparent materials (such as glass, plastic bottles) that are difficult to detect by traditional sensors, suitable for high-precision production lines.
• 2. Wide Voltage Compatibility & Flexible Output: Works with 10-30VDC standard industrial power supply, supporting NPN and PNP output modes; compatible with normally open (NO) and normally closed (NC) circuits, easily matching various PLC and industrial control systems.
• 3. IP67 Protection for Harsh Environments: The sensor body and fiber optic probe both reach IP67 protection level, effectively resisting oil, dust, cutting fluid, and splashing water; applicable to harsh working conditions such as machining workshops, food packaging lines, and chemical plants.
• 4. Fast Response & Stable Performance: Response speed as low as 10μs (microseconds), ensuring no missed detection or delay when detecting high-speed moving objects (such as conveyor belt parts); strong anti-interference ability against ambient light and electromagnetic signals, maintaining stable operation for a long time.
• 5. Easy Installation & Long Service Life: Equipped with adjustable mounting brackets and standard M8 connectors; the fiber optic probe is flexible and can be bent to fit narrow spaces; core components adopt imported chips, with a service life of more than 100,000 hours, reducing replacement costs.
